Product Details
Place of Origin: China
Brand Name: Warom
Certification: IECEx;ATEX
Model Number: BSZD85-C
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Explosion Protection: |
IEC,NEC |
Can Be Used In: |
Zone 1,2,21,22 Class I, Zone 1,2 Division 2, Groups A, B, C, D. |
Explosion Protection: |
IEC,NEC |
Can Be Used In: |
Zone 1,2,21,22 Class I, Zone 1,2 Division 2, Groups A, B, C, D. |
Specification
|
Global (IECEx) |
IECEx NEP 22.0026X |
|
Gas and dust |
Ex db eb ib IIC T6 Gb Ex tb IIIC T80℃ Db |
|
Europe (ATEX) |
DNV 24 ATEX 64478X |
|
Gas and dust |
|
|
Certificates |
IECEx; ATEX |
|
Conformity to standards |
EN; IEC |
|
Degree of protection |
IP66 |
Data
|
Enclosure |
Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021) |
|
Transparent cover |
Toughened glass, stands 4J impact |
|
Exposed fastener |
Stainless steel |
|
Rated voltage |
100~277V AC/DC, 12~48V AC/DC |
|
Lamp specification |
LED |
|
Lamp power (W) |
≤40W (continuous work) |
|
Lamp colour |
Red |
|
Max. luminous intensity value |
＞2000cd |
|
Flash frequency |
20~60(times/min) |
|
Earthing protection |
M5 (internal & external earth bolts) |
|
Ambient temperature |
-40℃~+53℃ |
|
Terminal |
3 x 1.5~2.5mm2 (L+N+PE) |
|
Cable entries |
4 x M25 x 1.5 plugs |
|
Cable gland |
BPT |
|
Weight |
6kg |
Download

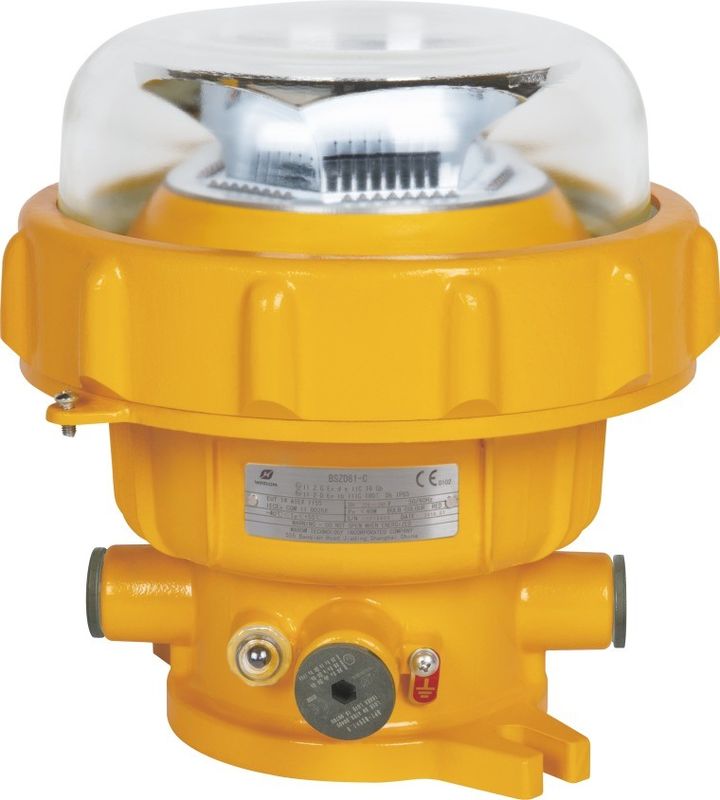

BSZD85-C Series Explosion-proof Medium Intensity Aircraft Warning Light
(Download here: BSZD85-C Series Explosion-proof Medium Intensity Aircraft Warning Light.pdf)
Global (IECEx):IECEx NEP 23.0026X
(Download here: IECEx NEP 23.0026X Issue No.0.pdf)
