Product Details
Place of Origin: China
Brand Name: Warom
Certification: IECEx; ATEX; CU-TR
Model Number: PXK(Px)
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Explosion Protection: |
CENELEC,IEC |
Can Be Used In: |
Zone 1, 2, 21, 22 |
Product Type: |
Cabinet |
Size: |
Customizable |
Material: |
Powder Coated Carbon Steel Or Stainless Steel |
Certifications: |
IECEx; ATEX |
Type: |
Explosion-proof |
Explosion Protection: |
CENELEC,IEC |
Can Be Used In: |
Zone 1, 2, 21, 22 |
Product Type: |
Cabinet |
Size: |
Customizable |
Material: |
Powder Coated Carbon Steel Or Stainless Steel |
Certifications: |
IECEx; ATEX |
Type: |
Explosion-proof |
Specification
|
Global (IECEx) |
IECEx CQM19.0019X |
|
Gas and dust |
Ex db eb pxb IIC T4 Gb Ex pxb tb IIIC T130℃ Db IP66 |
|
Europe (ATEX) |
ATEX(applied for) |
|
Gas and dust |
|
|
Certificates |
IECEx; ATEX;CUTR;INMETRO |
|
Conformity to standards |
EN;IEC |
Data
| Positive pressure value | 200Pa~800Pa(0.002bar~0.008bar) |
| Air sourre | 0.2MPa~0.8MPa (2bar~8bar) |
| Rated voltage |
Max. 1000V AC 50/60Hz Max. 1500V DC |
| Rated current | Max. 630A |
| Enclosure material | Powder coated carbon steel or stainless steel |
| Degree of protection | IP66 |
| Ambient temperature | -40℃~+55℃ |
Download

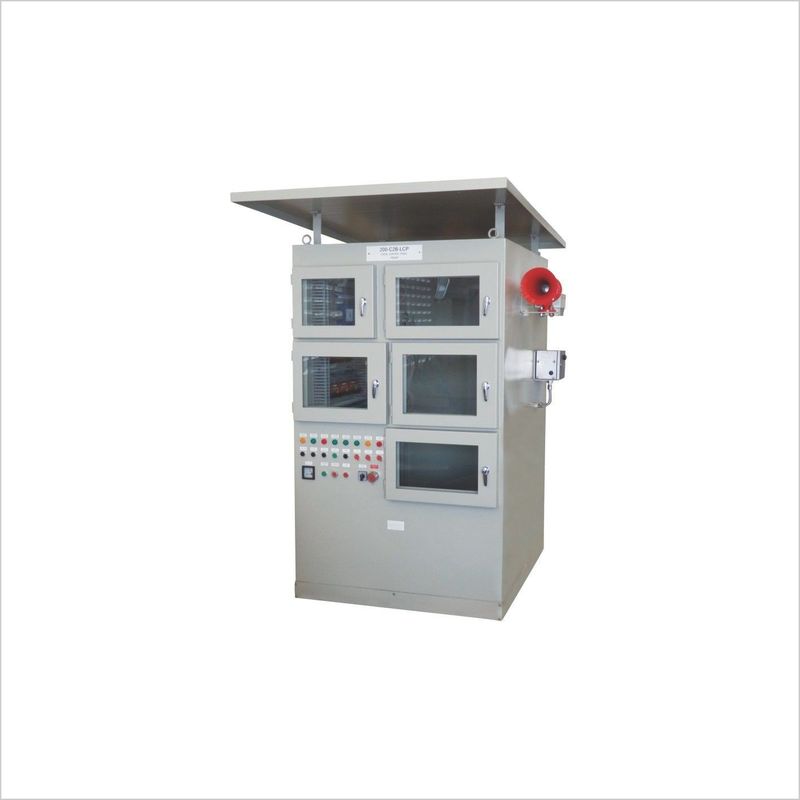

PXK (Ex pz IIC) Series Explosion-proof Pressurized Distribution Cabinets
(Download here:PXK Series Explosion-proof Pressurized Distribution Cabinets.pdf)
Global (IECEx):IECEx CQM 19.0019X
(Download here:IECEx CQM 19.0019X Issue No.0.pdf )
